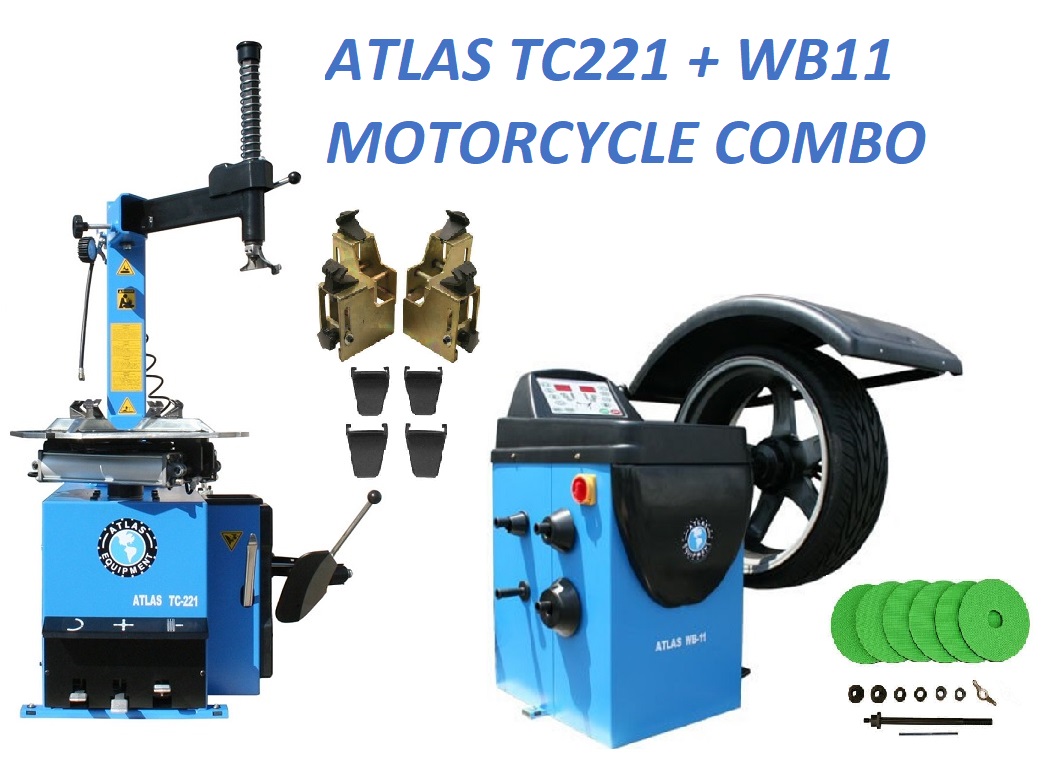

This combination package includes the Atlas® TC221 rim-clamp swing arm tire changer & the Atlas® WB11 computerized spin balancer with the necessary motorcycle adapters to handle standard MC tires. This combination is perfect for the homeowner, small commercial shop or ATV/Motorcycle dealer looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.
$2,999.00
Tire Changer & Wheel Balancer Motorcycle Combo
TC221 Tire Changer
- Rim Clamp/Swing Arm Tire Changer
- Deluxe Motorcycle Adapters w/ Plastic Jaw Covers Included
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions
- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator gun w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
WB11 Wheel Balancer
- Computer Controlled Motorized Spin Balancer

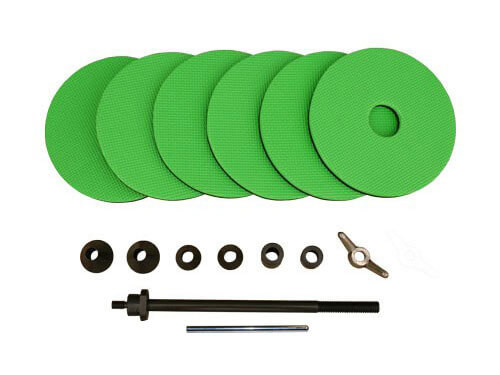

- Standard 14mm Motorcycle Adapter Kit Included
- Automatic and pedal operated brake
- Automatic start/stop when hood is lowered/raised
- Static and dynamic balancing modes
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes
- Display in grams or ounces, and in mm or inches
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
| Atlas® TC221 Specifications | |
| Rims | Steel, Aluminum, Alloy |
| External Locking Rim Dimension (3 Positions) | 1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4" |
| Internal Locking Rim Dimension (3 Positions) | 1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4" |
| Maximum Tire Diameter | 39" |
| Maximum Wheel Width (Bead Breaker) | 13" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110volt |
| Shipping Weight | 550 lbs. |
| Atlas® WB11 Specifications | |
| Max Tire Diameter | 39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) | 10"-32" |
| Rim Width | 1 1/2"-20" |
| Shaft Size | 40mm |
| Max. Wheel Weight | 150 lbs. |
| Balancing Speed | 150 rpm |
| Data Entry | All Dimensions Manual |
| Measurements | Standard Or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110volt |
| Shipping Weight | 355 lbs. |
Equipment Details Video
| Weight | 800 lbs |
|---|---|
| Brand |
