The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
$4,149.00
Commercial Grade Baseplate 10,000 lb. Capacity
- 10,000 lb. Capacity
- Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 111 7/8″ (9′ 3 7/8″)

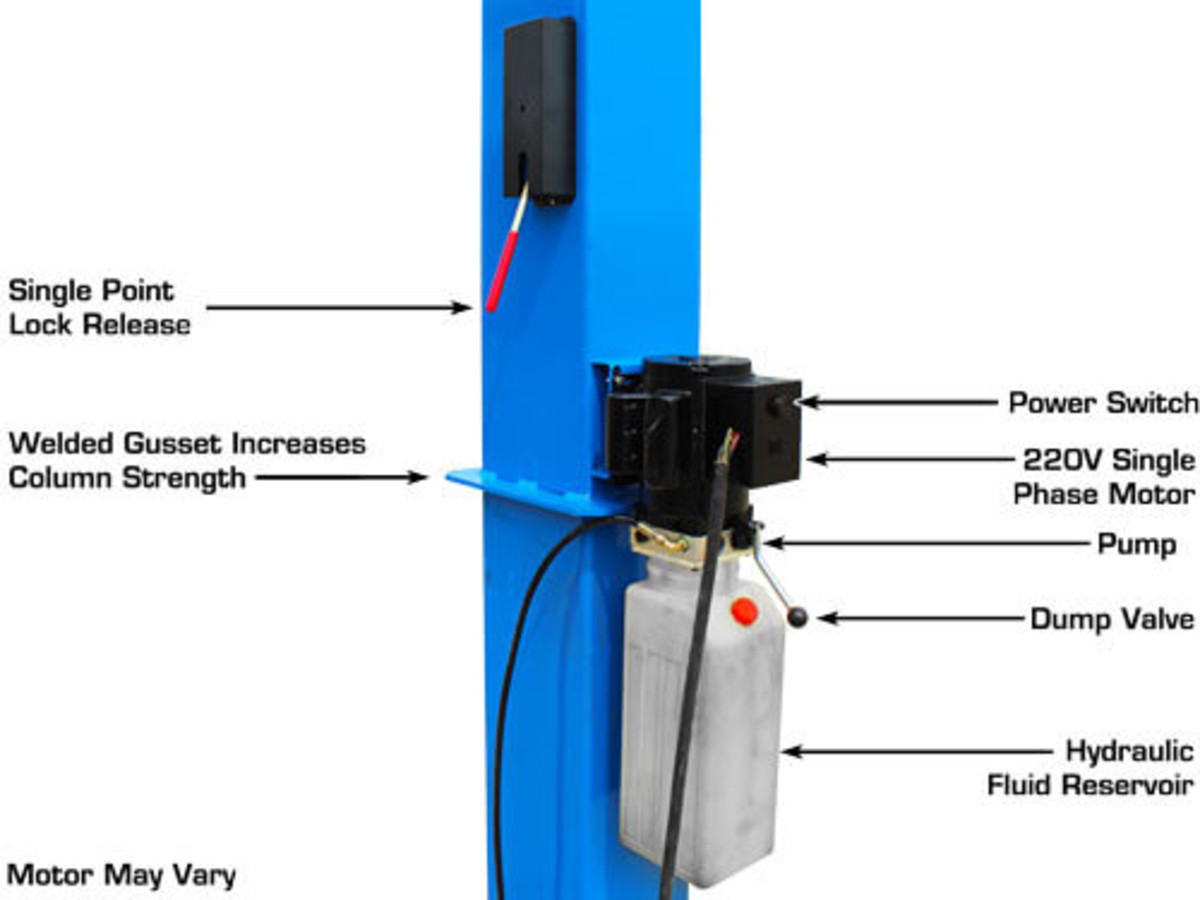

- Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously

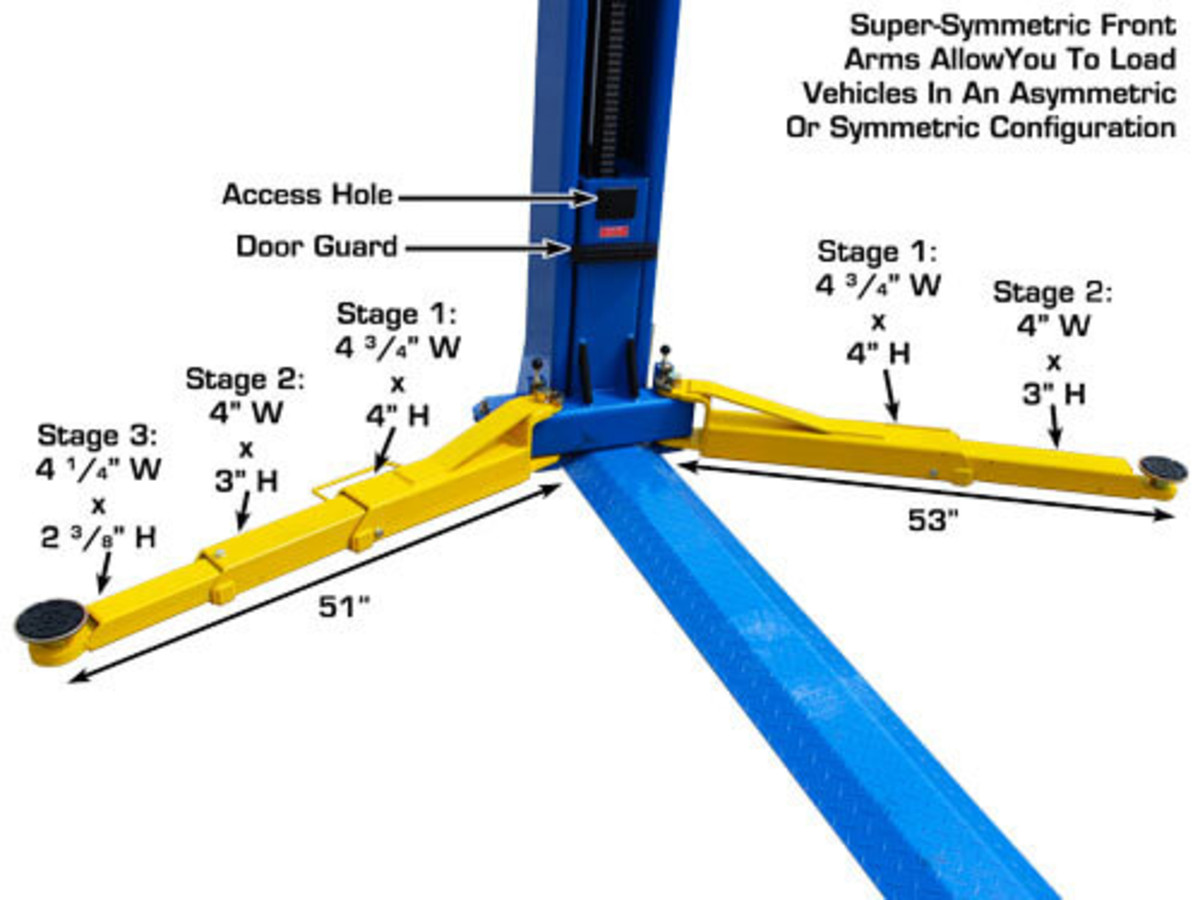

- Super-Symmetric Arms

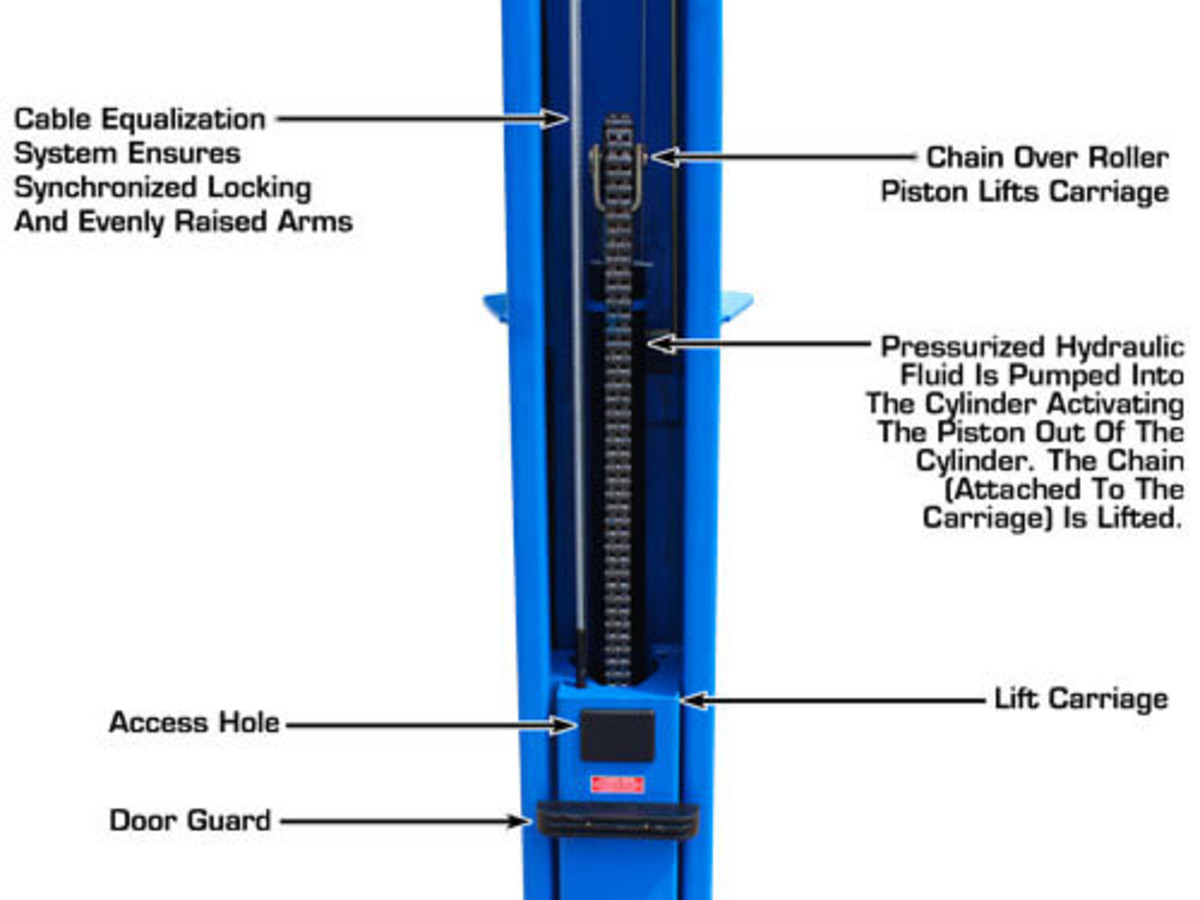

- Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
- Welded Support Gussets Increase Column Strength.

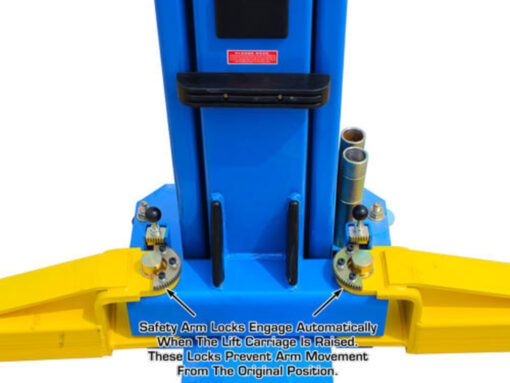

- Automatic Arm Restraints
- Powder Coat Finish

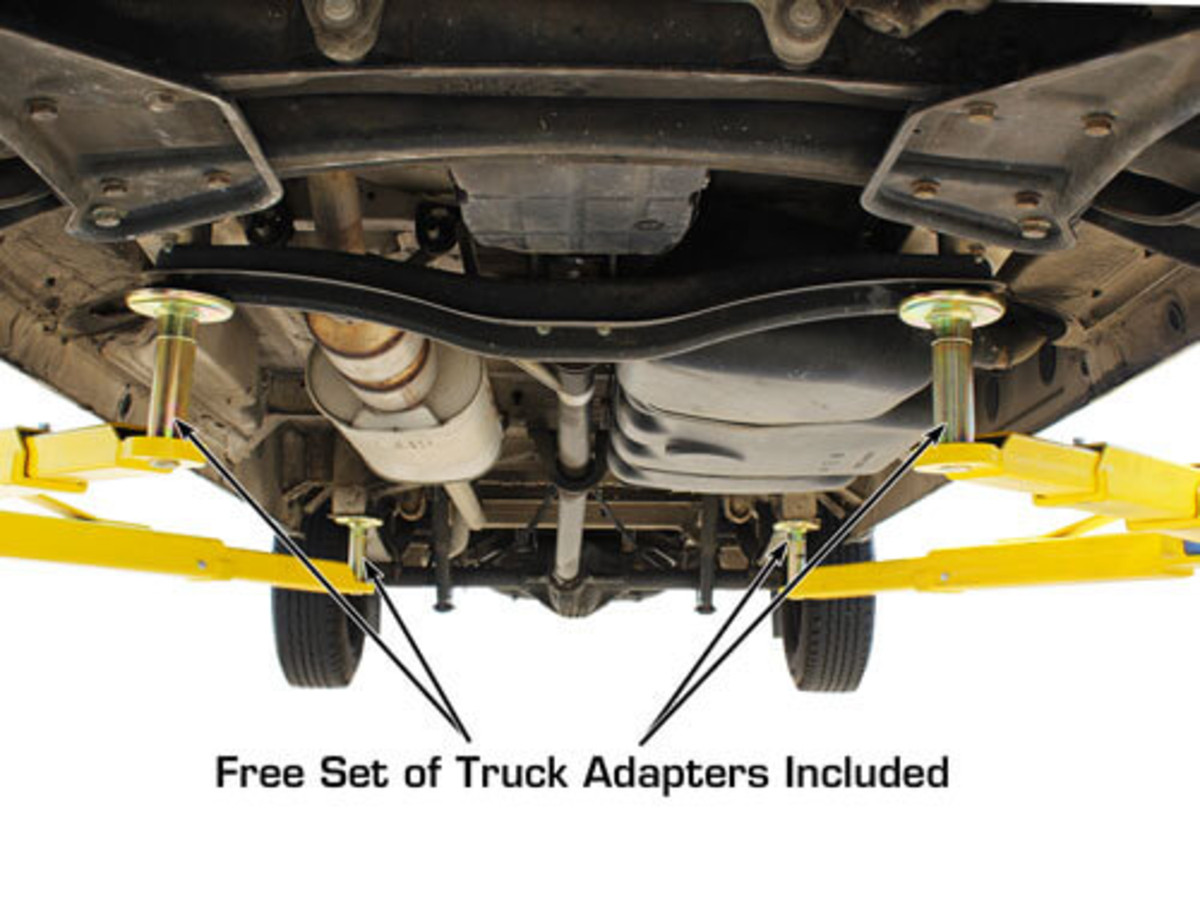

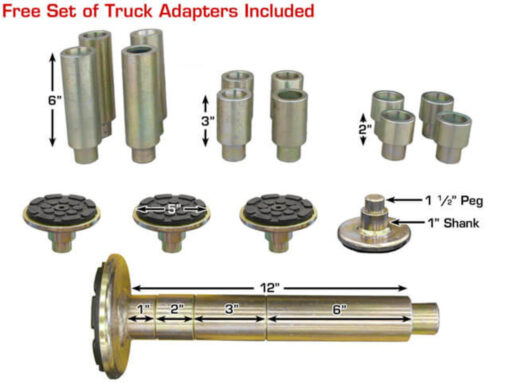

- Free 12 Piece Truck Adapter Set

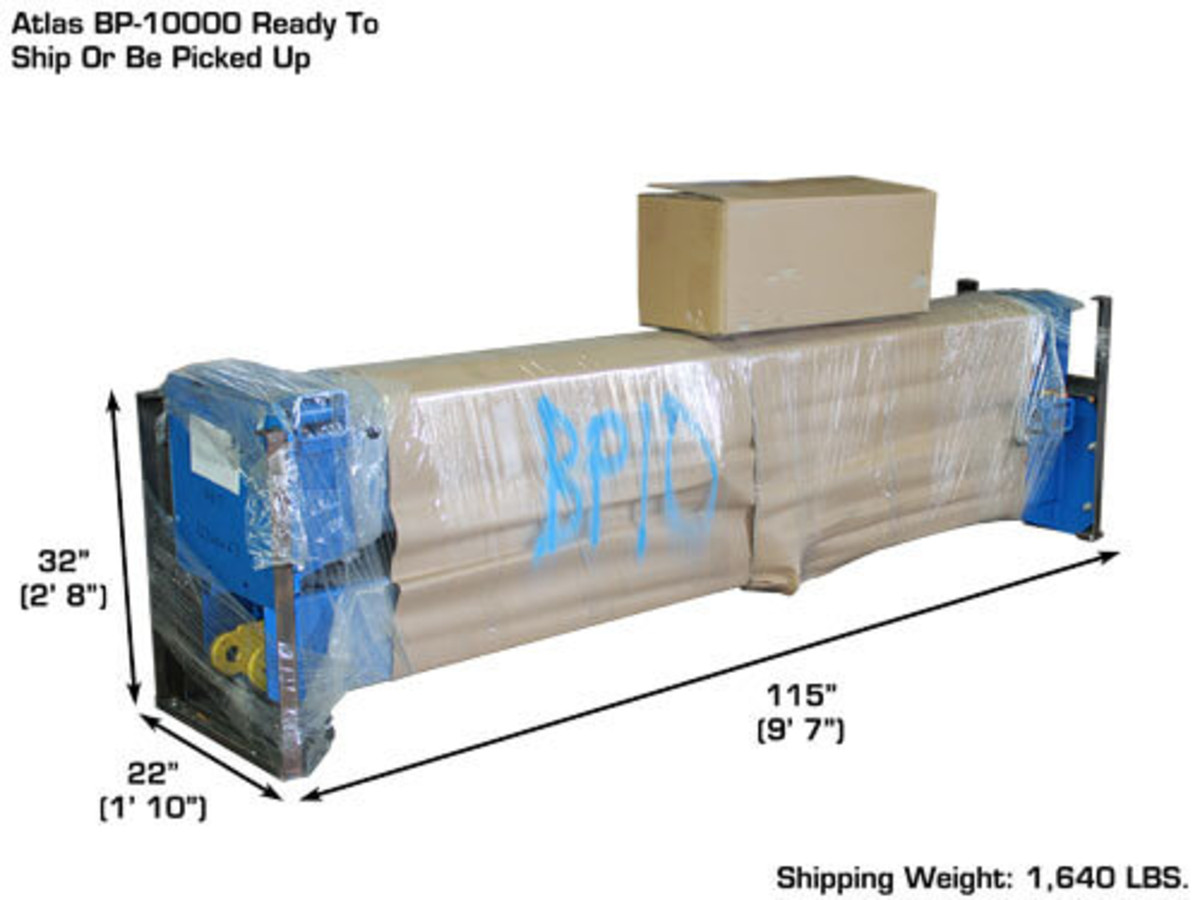

- Shipping Weight: 1,640 LBS.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

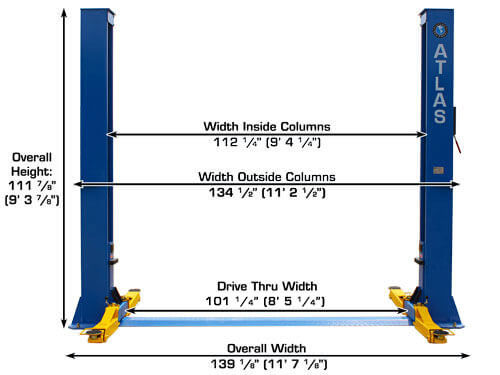

| Atlas® ATTD-BP10000X Specifications | ||
| Capacity | 10,000 LB. | Overall Height | 111 7/8" (9’ 3 7/8") |

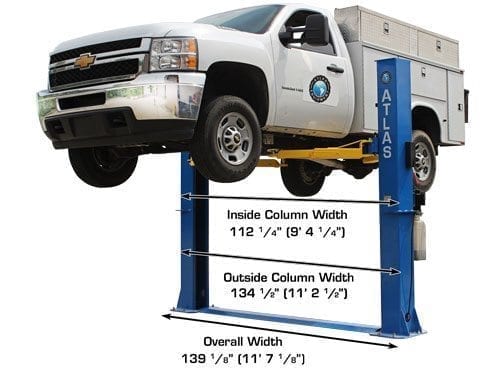

| Overall Floor Width | 139 1/8" (11’ 7 1/8") | |
| Outside Column to Outside Column | 134 1/2" (11’ 2 1/2") | |

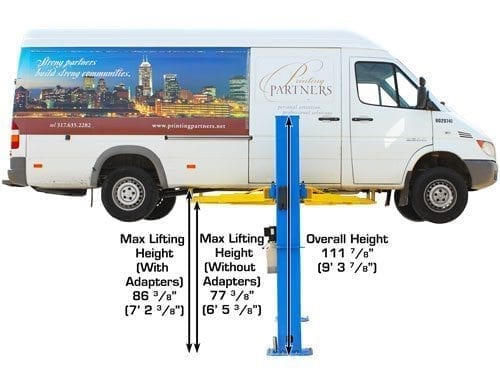

| Maximum Lift Height (Without Adapters) | 77 3/8" | |

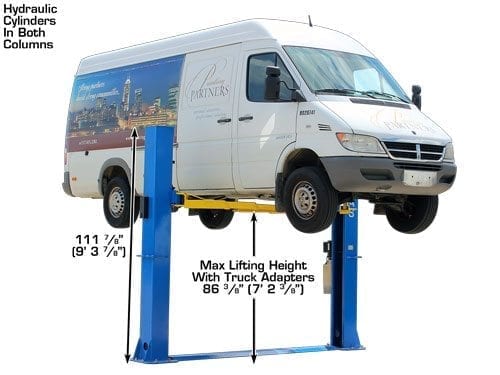

| Maximum Lift Height (With Adapters) | 86 3/8" | |
| Minimum Arm Height | 4" | |

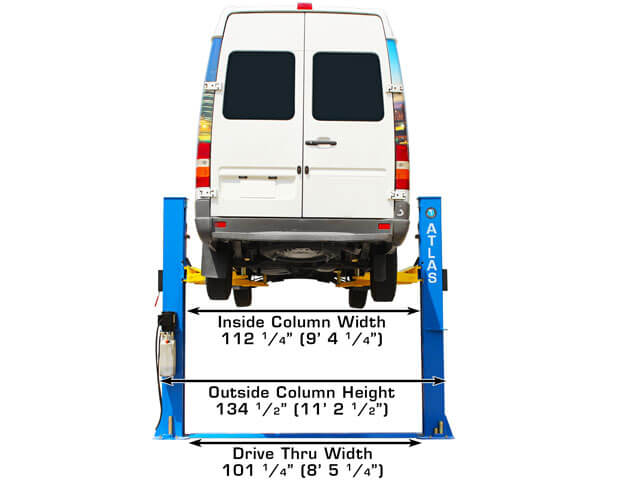

| Inside Column | 112 1/4” (9’ 4 1/4”) | |

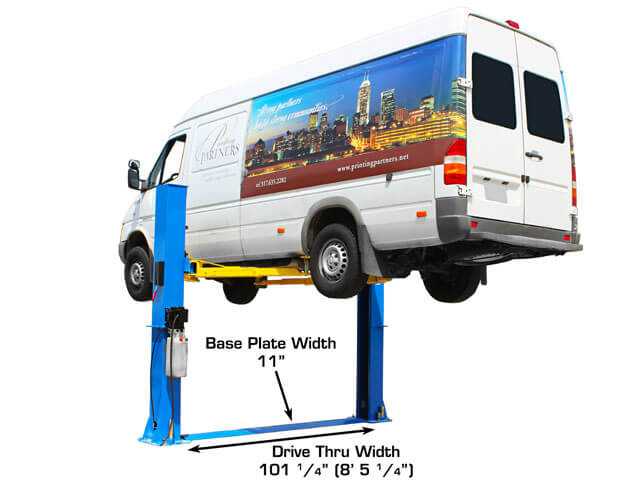

| Drive Thru | 101 1/4” (8’ 5 1/4”) | |

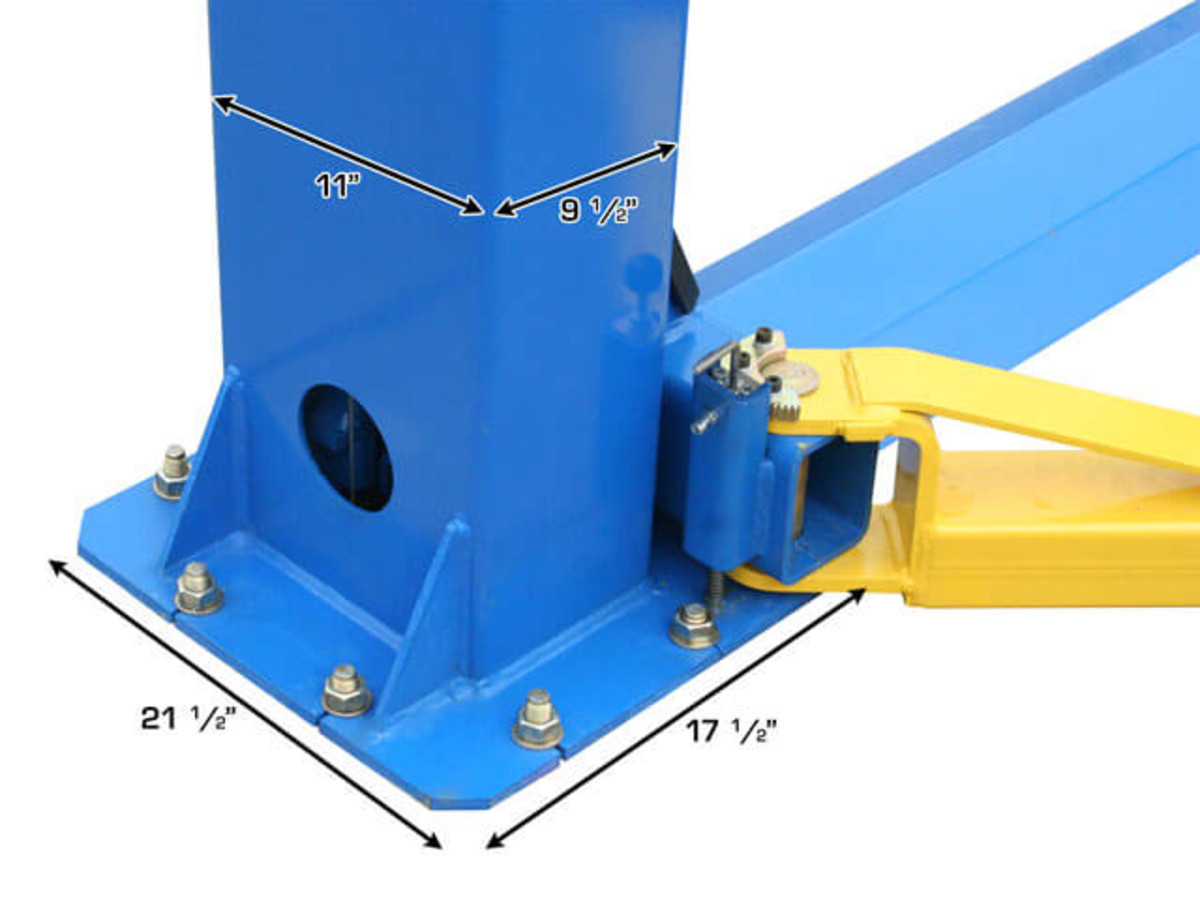

| Column Size | 9 1/2" x 11" | |
| Column Thickness of Steel | 6mm | Base Of Lift | 17 1/2" x 21 1/2" |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended | |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,640 LBS. | |

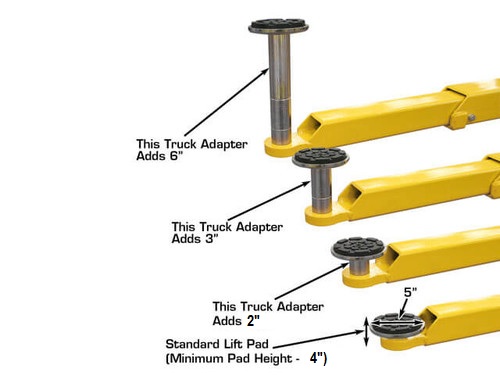

| Adapter Heights | 4 Each 2”, 3”, 6” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
| Requires a minimum of 4" of concrete with a 3000 psi. rating | ||
Equipment Details Video
| Atlas® BP10000X Manual | Download |
